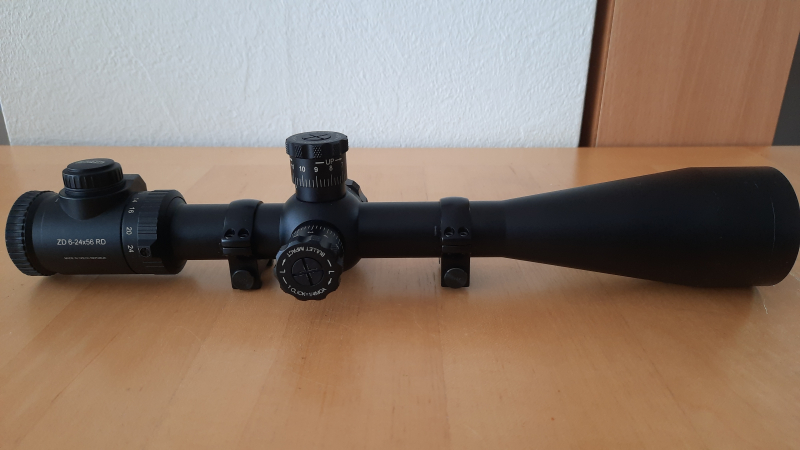

Meopta ZD 6-24×56 RD Riflescope

The Meopta ZD 6-24×56 RD combines a broad 6-24x magnification range with a large 56 mm objective lens and an illuminated reticle. Meopta developed this ZD model around precision-oriented observation, with fine adjustment controls and a dedicated parallax system built into the scope.

The original factory manual identifies the optic specifically as the ZD 6-24×56 RD and lists an illuminated Mil-Dot Special reticle, 1/4 MOA adjustment increments and parallax focusing from 30 metres to infinity.

At the same time, the 30 mm main tube and straightforward black exterior give the optic a traditional riflescope profile rather than an overly complicated appearance.

Meopta continues to keep the original ZD 6-24×56 RD manual available through its official riflescope download archive.

Meopta ZD 6-24×56 RD Optical Design

The Meopta ZD 6-24×56 RD provides variable magnification from 6x to 24x.

At the lower end, the optic gives a broader view of the scene. Meanwhile, increasing magnification narrows the field of view while enlarging finer visual detail.

The factory manual lists a field of view between approximately 3.2° and 0.88°, together with an exit pupil measuring about 9.3 mm at the lower end and 2.3 mm at the upper end.

As a result, the optical specifications clearly reflect the difference between the lower and higher magnification settings.

The 6-24x range also gives the ZD a noticeably different character from fixed-power or lower-magnification sporting optics.

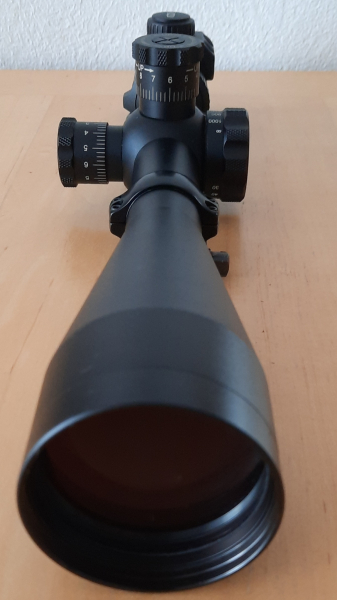

56 mm Objective Lens

The front of the scope uses a 56 mm objective lens.

The large objective gives the ZD 6-24×56 RD its recognizable profile and works together with the high-magnification optical system.

Meopta’s original documentation also identifies MeoBright 5501 anti-reflection coatings among the scope’s optical features. The manual states that these coatings improve light transmission through the optical system.

Therefore, the 56 mm objective forms more than a simple physical measurement. It belongs to the overall optical design of the scope.

For SEO, however, there is no need to repeat 56 mm objective in every paragraph. The product title and specifications already make the size clear.

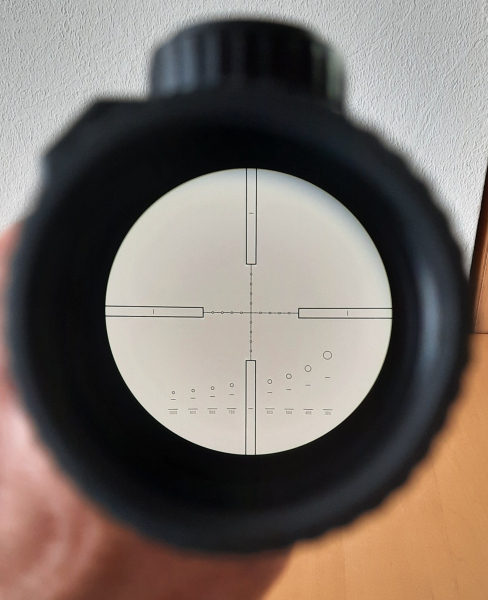

Illuminated Mil-Dot Special Reticle

The original Meopta manual lists a MIL-DOT SPECIAL reticle with an illuminated central crosshair.

The reticle uses thin lines, hollow posts and circular reference elements. Meopta designed the pattern to keep the central viewing area relatively open while providing additional reference markings.

In addition, factory documentation states that the reticle’s reference dimensions correspond to 12x magnification.

For the WooCommerce specifications, I would write:

Reticle: Mil-Dot Special, illuminated

That is clearer and more useful than simply writing RD without explaining the actual reticle configuration.

Second Focal Plane Reticle

Documentation for the Meopta ZD family identifies the 6-24×56 as a second-focal-plane riflescope. Meopta’s current reticle documentation also references the ZD 6-24×56 SFP platform when describing compatible reticle patterns.

As a result, the apparent reticle size remains visually constant while magnification changes.

That differs from first-focal-plane designs, where the reticle appears to grow or shrink together with the image.

Therefore, a clean specification is:

Focal Plane: Second focal plane

This detail belongs in the technical information but does not need to appear repeatedly in the SEO title.

Adjustable Parallax from 30 m to Infinity

The Meopta ZD 6-24×56 RD includes adjustable objective focusing for parallax correction.

The original manual gives a focusing range from 30 metres to infinity.

Because of this, the scope includes a separate parallax control rather than relying on a single fixed setting.

The parallax turret forms one of the recognizable controls around the center of the scope.

Meanwhile, later 6-24×56 Meopta variants can have somewhat different specifications. For example, some later ZD configurations are documented with parallax beginning around 25 metres.

For this original ZD 6-24×56 RD description, I would keep the factory-manual figure of:

30 m to infinity

unless the markings or paperwork for your individual scope state otherwise.

1/4 MOA Adjustment

Meopta specifies an adjustment increment of 1/4 MOA per click for the original ZD 6-24×56 RD.

The same documentation lists a minimum vertical adjustment range of 80 MOA and a minimum horizontal range of 30 MOA.

Therefore, a clean technical description would state:

Adjustment Step: 1/4 MOA

Vertical Adjustment Range: minimum 80 MOA

Horizontal Adjustment Range: minimum 30 MOA

These figures communicate the factory specifications without filling the main product title with unnecessary numbers.

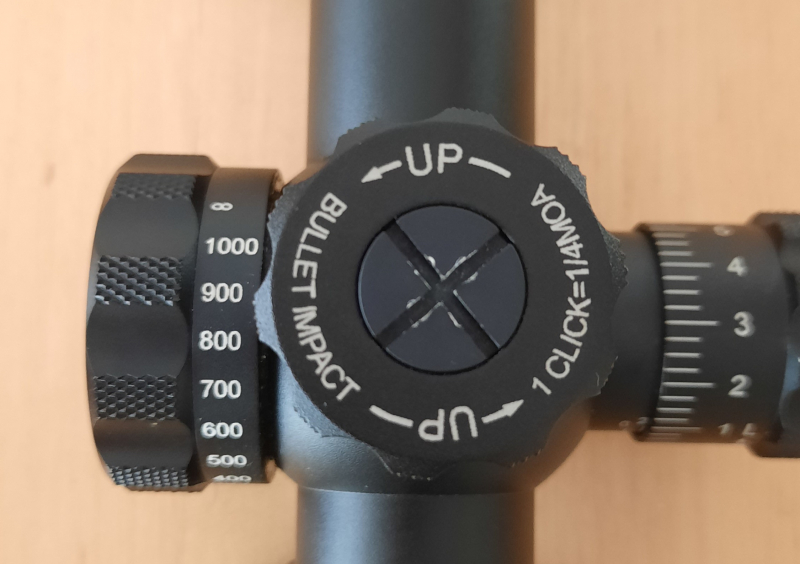

Elevation and Windage Turrets

The ZD uses separate elevation and windage adjustment turrets positioned around the center section of the scope.

Meopta’s original manual illustrates independent controls for vertical and horizontal correction. The manufacturer also describes the adjustment system as allowing the horizontal and vertical reticle movements to operate independently.

As a result, the turret layout forms an important visual detail of the ZD.

At the same time, the controls retain a simple mechanical appearance rather than using oversized modern competition turrets.

For gallery photographs, close-up images of the elevation, windage and parallax controls would help document this particular example.

30 mm Main Tube

The Meopta ZD 6-24×56 RD uses a 30 mm main tube.

Meopta’s original documentation confirms the 30 mm central tube diameter.

The manufacturer also describes the tube as an aluminum construction with an anodized exterior treatment.

Therefore, the middle section stays relatively slim compared with the large 56 mm objective.

For your specifications, simply use:

Main Tube Diameter: 30 mm

There is no need to describe it with exaggerated phrases such as “heavy-duty” unless the manufacturer specifically uses that terminology.

Aluminum Body and Anodized Finish

Meopta uses an aluminum body for the ZD.

The original manual describes the housing as made from lightweight aluminum alloys and lists an anodized surface treatment intended to resist wear and reduce reflections.

In addition, the black finish gives the optic the straightforward appearance normally associated with the ZD series.

The body design also keeps most of the visual emphasis on the objective lens, central turret assembly and magnification ring.

For that reason, simple wording such as black anodized aluminum body is more useful than marketing-heavy phrases.

MeoBright Optical Coatings

Meopta lists its MeoBright 5501 anti-reflective coatings in the original ZD manual.

These coatings form part of the optical system and help manage light transmission through the scope.

As a result, MeoBright belongs among the genuine product features rather than being a generic description added for SEO.

A clean feature line would be:

MeoBright 5501 anti-reflective lens coatings

This also gives the product page another useful Meopta-specific term without repeatedly forcing the full focus keyphrase into every section.

80 mm Eye Relief

The original factory specifications list approximately 80 mm of eye relief for the ZD 6-24×56 RD.

The manual also refers to this distance when describing the scope’s basic mounting dimensions.

Therefore, your WooCommerce technical information should use:

Eye Relief: 80 mm

rather than copying different measurements from later Meopta 6-24×56 variants.

This distinction matters because Meopta has produced more than one 6-24×56 optic over the years.

Exit Pupil

The exit pupil changes across the magnification range.

Factory specifications list approximately:

9.3 mm at 6x

and

2.3 mm at 24x.

As expected, the exit pupil becomes smaller as magnification increases.

These measurements are useful technical information, although they do not need to appear in the SEO title or short description.

Instead, include them under the detailed specifications or in a section like this one.

Field of View

The original manual lists a field of view from approximately 3.2° to 0.88° across the zoom range.

Therefore, the field becomes progressively narrower as the scope moves toward 24x magnification.

This is normal for a high-magnification variable optic.

Meanwhile, keeping the actual manufacturer figures makes the description more useful than writing vague phrases such as “wide viewing area.”

Diopter Adjustment

The eyepiece provides approximately ±3 diopters of correction according to Meopta’s factory manual.

For a specification table, write:

Diopter Adjustment: ±3 D

That gives the reader a clear technical figure without adding unnecessary explanation.

In addition, the adjustable eyepiece forms another visible component that can be documented in your product photographs.

Reticle Illumination

The RD version includes reticle illumination.

Meopta’s factory specifications list 256 daytime levels and 256 nighttime levels, with continuous or incremental brightness control. The night settings are also documented as compatible with NV devices.

As a result, illumination provides one of the main differences between this model and a non-illuminated optic.

The system uses a battery housed within the central control assembly.

For the product page, a clean description is:

Illuminated Mil-Dot Special reticle with adjustable day and night brightness

There is no need to place all 512 listed brightness steps in the product title.

Battery Type

The original Meopta manual lists a CR2354 battery and also references CR2023 as an alternative specification.

The English section of the manual notes that the supplied power cell was a CR2354.

Therefore, I would use:

Battery: CR2354

and, if you want to retain the complete factory wording:

Battery: CR2354 / CR2023 according to factory documentation

For an individual used scope, however, confirm what battery compartment and cap are actually present before adding accessories to the listing.

Waterproof and Nitrogen-Filled Construction

The original Meopta manual describes the ZD as waterproof and nitrogen-filled.

The factory specification lists resistance to external water pressure equivalent to 1 metre for 2 hours and moisture resistance of 98%.

In addition, nitrogen filling helps prevent internal fogging under changing environmental conditions.

For the main description, simple wording works best:

Waterproof, nitrogen-filled construction

Keep the detailed environmental figures in the technical specifications rather than repeating them throughout the page.

Shock Resistance

Meopta built the ZD around a mechanically resistant optical housing.

The original manual lists impact resistance of 5000 m/s² and references STANAG 2914, STANAG 2985 and MIL-STD-810 testing standards.

Therefore, shock resistance belongs among the documented features of the model.

However, there is no reason to turn the product page into a military testing explanation.

The simple wording:

Shock-resistant construction tested to listed factory standards

is enough for the descriptive section.

Operating Temperature Range

The original ZD manual gives an operating temperature range from approximately -40°C to +55°C. Storage temperature is listed from -45°C to +71°C.

These figures provide useful background on the environmental specification of the optic.

However, they belong in the detailed technical data rather than the SEO title.

A clean WooCommerce entry is:

Operating Temperature: -40°C to +55°C

Storage Temperature: -45°C to +71°C

Overall Length

The factory manual lists complete dimensions of approximately 386 × 81 × 88 mm.

Therefore, the overall length is approximately 386 mm.

This gives the ZD a relatively long profile, which makes sense alongside its 24x maximum magnification and 56 mm objective.

Meanwhile, the large central turret assembly contributes to its 81 mm overall height and 88 mm width in the complete factory specification.

865 g Weight

Meopta lists the original ZD 6-24×56 RD at approximately 865 g.

This specification helps distinguish the original model from later 6-24×56 Meopta optics that may have different housings and weights.

For example, later published ZD specifications can show slightly different figures depending on exact configuration.

For that reason, I would use the original manual figure of:

Weight: approximately 865 g

for this page unless your particular scope belongs to a later version with different documentation.

Older Meopta ZD Platform

The ZD 6-24×56 RD belongs to an earlier Meopta riflescope family, but the manufacturer still retains its user manual in the official download archive.

That makes it easier to separate genuine ZD specifications from numbers belonging to newer Meopta optics.

For example, Meopta currently produces the MeoForce DF 6-24×56, which also uses 6-24x magnification and a 56 mm objective. However, the MeoForce DF carries its own technical specifications and should not be treated as the same product.

Therefore, I would keep this page focused specifically on:

Meopta ZD 6-24×56 RD

rather than mixing features from the ZD, MeoForce, Optika6 or other Meopta series.

Clean ZD Styling

The ZD has a straightforward black exterior with a large objective, exposed central controls and a long optical body.

The 30 mm main tube keeps the central section relatively narrow. Meanwhile, the 56 mm objective expands noticeably toward the front.

The elevation, windage and parallax controls create the most recognizable detail around the middle of the optic.

At the same time, Meopta keeps decorative branding fairly restrained.

The result is a functional optical design without unnecessary exterior styling.

Key Features

• Genuine Meopta ZD 6-24×56 RD
• 6-24x variable magnification
• 56 mm objective lens
• Mil-Dot Special reticle
• Illuminated center crosshair
• Second focal plane design
• 30 m to infinity parallax adjustment
• 1/4 MOA adjustment increments
• Minimum 80 MOA vertical adjustment range
• Minimum 30 MOA horizontal adjustment range
• 30 mm main tube
• Aluminum body
• Anodized exterior finish
• MeoBright 5501 lens coatings
• 80 mm eye relief
• 9.3-2.3 mm exit pupil
• ±3 D diopter adjustment
• 256 daytime brightness levels
• 256 nighttime brightness levels
• CR2354 battery
• Waterproof construction
• Nitrogen-filled housing
• Shock-resistant design
• Approximately 386 mm length
• Approximately 865 g weight

About the Meopta ZD 6-24×56 RD Platform

Meopta developed the ZD 6-24×56 RD as a high-magnification riflescope with an illuminated reticle and a substantial range of optical adjustment.

The original factory manual confirms 6-24x magnification, a Mil-Dot Special illuminated reticle, 30 m-to-infinity focusing and 1/4 MOA correction increments.

In addition, the scope uses a 30 mm aluminum tube, waterproof and nitrogen-filled construction and MeoBright optical coatings.

The illumination system provides separate daytime and nighttime brightness ranges. Meanwhile, the factory documentation lists approximately 80 mm eye relief and a total weight of 865 g.

Meopta still lists the ZD 6-24×56 RD within its official riflescope manual archive. Additional catalog information on sporting optics is available through Gunvexa.

Finally, the Meopta ZD 6-24×56 RD combines high 24x magnification, a 56 mm objective, illuminated Mil-Dot Special reticle, adjustable parallax and fine 1/4 MOA controls within a recognizable Meopta ZD optical platform.
