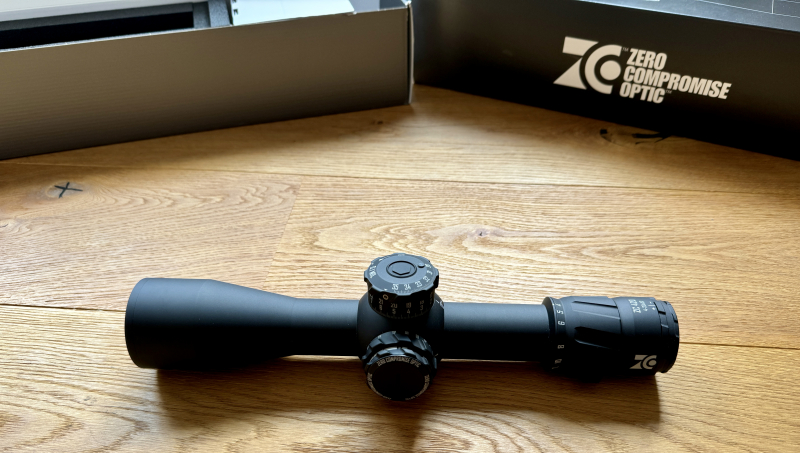

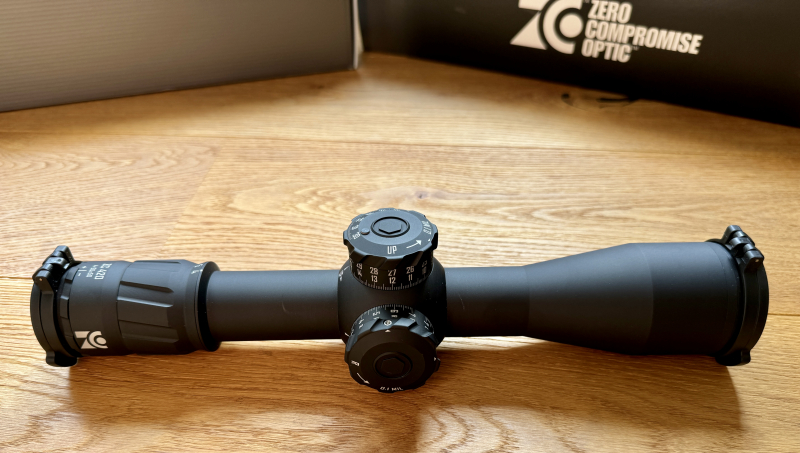

ZCO ZC420 4-20×50 MPCT1 Riflescope

The Zero Compromise Optic ZC420 is a compact first-focal-plane riflescope with 4-20x magnification, a 50 mm objective and the MPCT1 reticle. This example is described as as good as new, making its condition an important part of the individual listing.

ZCO gives the ZC420 a short 328 mm body, a 36 mm main tube and a listed weight of approximately 1,036 g. Therefore, the scope combines a relatively compact format with a broad adjustment range and high-magnification optical system.

4-20×50 Optical System

The ZC420 moves from 4x to 20x magnification and uses a 50 mm objective lens. ZCO lists a field of view of approximately 9.3 to 2 m at 100 m, eye relief greater than 90 mm and light transmission of 92%.

As a result, the model covers a useful magnification range without requiring the longer body found on many high-power optics.

MPCT1 First-Focal-Plane Reticle

This scope is fitted with the original MPCT1 reticle. The MPCT1 is a MIL-based first-focal-plane design with fine 0.2 mil graduations and a relatively open layout rather than a full Christmas-tree grid.

In addition, the reticle remains proportional to the viewed image as magnification changes. The newer MPCT1X later replaced the original MPCT1, so the two names should not be treated as identical.

0.1 MRAD Adjustment

The ZC420 uses 0.1 MRAD clicks. Factory data lists approximately 35 MRAD of elevation adjustment and 20 MRAD of windage adjustment.

Both elevation and windage turrets lock. Meanwhile, ZCO’s AIM system manages reticle illumination automatically to help conserve battery power.

Parallax and Construction

The ZC420 provides parallax correction from approximately 25 m to infinity. It also uses a first-focal-plane reticle, red/green illumination, a CR2032 battery and waterproof construction rated to 4 m.

The scope measures approximately 328 mm / 12.8 in long. At the same time, its 36 mm tube gives the central body a distinctive ZCO profile.

Key Features

• Genuine Zero Compromise Optic ZC420
• 4-20x magnification
• 50 mm objective lens
• Original MPCT1 reticle
• First focal plane
• 0.1 MRAD click value
• 35 MRAD elevation range
• 20 MRAD windage range
• Locking elevation and windage turrets
• 36 mm main tube
• 92% listed light transmission
• More than 90 mm eye relief
• 25 m to infinity parallax
• Red and green illumination
• AIM automatic illumination management
• CR2032 battery
• 328 mm overall length
• Approximately 1,036 g
• Condition described as as good as new

About the ZCO ZC420

The ZCO ZC420 4-20×50 combines a compact body, first-focal-plane reticle and wide mechanical adjustment range. This particular example adds the original MPCT1 reticle and is described as being in as-good-as-new condition.

More manufacturer information is available through Zero Compromise Optic, while Gunvexa contains additional sporting-optics catalog information.

Finally, the ZC420 stands out through its short 328 mm body, 36 mm tube, 4-20x magnification and straightforward MPCT1 reticle layout.
