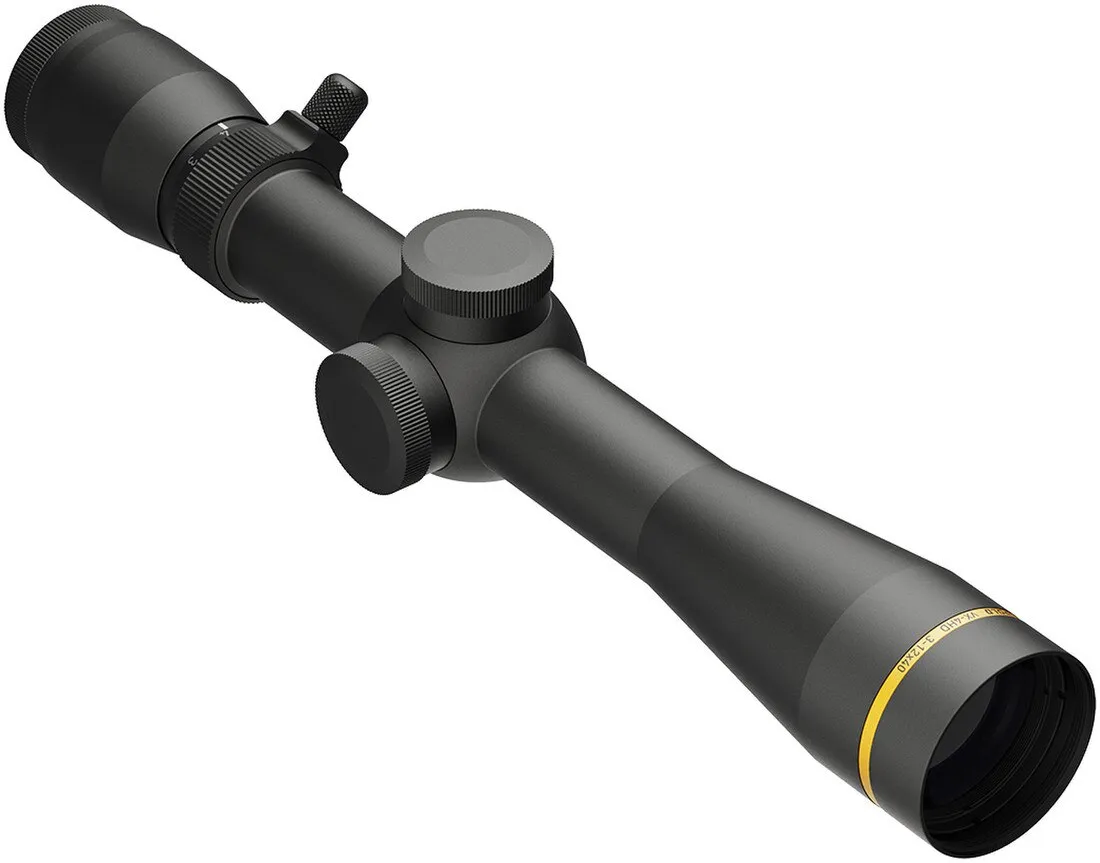

Leupold VX-4HD 3-12×40 Hunt-Plex Scope

The Leupold VX-4HD 3-12×40 Hunt-Plex combines a versatile 3-12x magnification range with a clean Hunt-Plex reticle and a lightweight 30mm scope body.

Leupold gives this model a 40mm objective lens, second focal plane reticle and Pop-Up Rezero adjustment system. In addition, the scope uses 1/4 MOA clicks, an integrated throw lever and high-definition lenses.

The optic weighs approximately 14.6 ounces and measures about 12.7 inches long. Therefore, it remains reasonably compact while offering up to 12x magnification.

Leupold VX-4HD 3-12×40 Hunt-Plex Magnification

The Leupold VX-4HD 3-12×40 Hunt-Plex provides magnification from 3x to 12x.

At 3x, the optic provides a wider view. Meanwhile, moving toward 12x brings smaller details closer.

Its 4:1 zoom ratio means the highest setting provides four times as much magnification as the lowest setting. Leupold specifically highlights this 4:1 range as one of the main features of the VX-4HD platform.

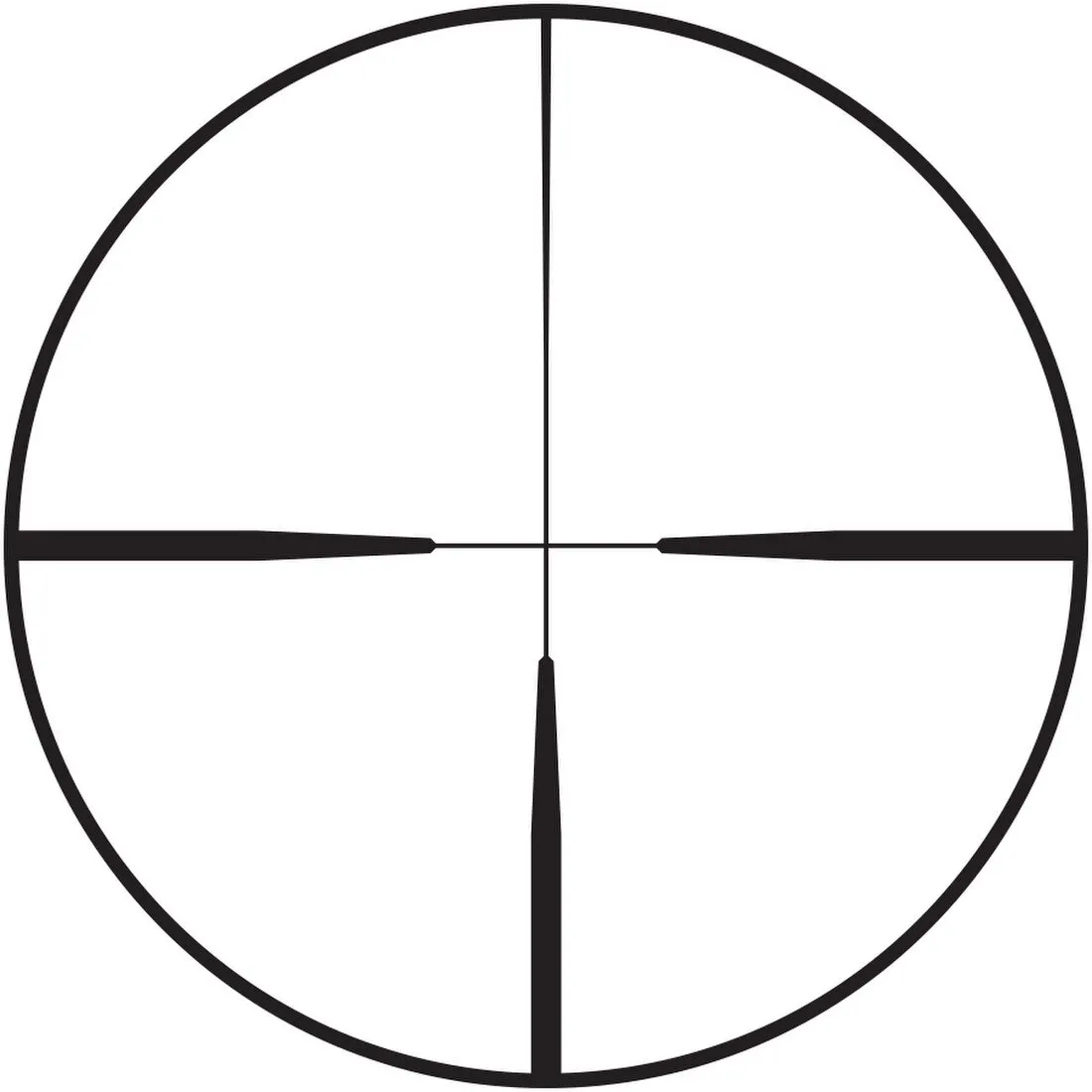

Hunt-Plex Reticle

The defining feature of this version is the Hunt-Plex reticle.

Leupold designs the Hunt-Plex with bold tapered pickets, an open center and a finer central line. The upper line also tapers downward without a heavy upper picket, which leaves more of the upper sight picture open.

As a result, the reticle provides a cleaner appearance than a dense grid-style design.

For your Gunvexa page, keeping Hunt-Plex in the title, slug and product specifications also helps distinguish this exact VX-4HD from the other 3-12×40 versions.

Second Focal Plane Design

The Hunt-Plex reticle sits in the second focal plane.

Therefore, the reticle remains the same apparent size while the viewed image changes as magnification moves between 3x and 12x.

Leupold officially lists this exact model as a second focal plane scope.

This differs from a first focal plane optic, where the reticle appears to grow and shrink together with the viewed image.

Bold Tapered Hunt-Plex Pickets

The Hunt-Plex uses bold tapered outer lines around its central aiming area.

These thicker sections make the overall reticle easier to identify against changing backgrounds.

Meanwhile, the center remains finer and more open.

Therefore, the design combines visible outer references with a less crowded center.

Fine Center Reticle

Leupold gives the Hunt-Plex a fine-line center.

This prevents the middle of the reticle from appearing unnecessarily heavy.

In addition, the open center leaves more of the viewed image visible around the central reference.

That makes the Hunt-Plex visually different from the more detailed MOA and MIL reticles used in some other Leupold scope families.

1/4 MOA Adjustments

The VX-4HD Hunt-Plex uses 1/4 MOA adjustment clicks.

Therefore, four clicks equal one full MOA.

Leupold lists the same 1/4 MOA value for both elevation and windage on this model.

The matching click values keep both adjustment controls straightforward.

Pop-Up Rezero Elevation

The scope uses Leupold’s Pop-Up Rezero elevation adjustment.

This differs from the CDS-ZL2 turret found on some other VX-4HD models.

Leupold specifically identifies the Hunt-Plex version as using Pop-Up Rezero rather than a locking CDS dial.

Therefore, avoid copying CDS-ZL2 specifications from the illuminated VX-4HD models onto this page.

Pop-Up Rezero Windage

Windage also uses a Pop-Up Rezero arrangement.

This keeps the elevation and windage controls consistent in their general design.

Once the scope has been adjusted, the control can provide a straightforward reference to the established setting.

Leupold lists both elevation and windage adjustment types as Pop-Up Rezero for part #185451.

65 MOA Elevation Range

The scope provides approximately 65 MOA of total elevation adjustment.

Leupold also lists 20 MOA of adjustment per revolution and an elevation dial travel limit of approximately 38 MOA.

These specifications describe different parts of the adjustment system:

• 1/4 MOA — adjustment per click
• 20 MOA — elevation adjustment per revolution
• 65 MOA — total elevation range
• 38 MOA — elevation dial travel limit

Keeping them separate makes your specification table easier to understand.

65 MOA Windage Range

Windage also provides approximately 65 MOA of total adjustment.

Each click equals 1/4 MOA, while one complete revolution provides approximately 20 MOA.

Therefore, both elevation and windage follow the same basic click and revolution values.

No Locking Dial

This Hunt-Plex model does not use a locking dial.

That is another important difference between this scope and the CDS-ZL2 versions in the VX-4HD family.

Therefore, do not add phrases such as locking CDS dial or ZeroLock turret to this product page.

The correct adjustment system for part #185451 is Pop-Up Rezero.

No CDS System

The Hunt-Plex version does not include Leupold’s Custom Dial System.

Leupold lists:

Custom Dial System: No
BDC Dial Included: No
Custom BDC Dial Compatible: No

This keeps the product clearly separate from the VX-4HD CDS-ZL2 versions.

30mm Maintube

The Leupold VX-4HD 3-12×40 Hunt-Plex uses a 30mm maintube.

Therefore, choose rings or a one-piece mount designed for a 30mm scope tube.

Do not confuse the 40mm objective measurement with the tube diameter.

The 30mm measurement determines mounting-ring compatibility, while 40mm describes the objective lens.

40mm Objective Lens

The scope uses a 40mm objective lens.

This keeps the front housing more compact than many 50mm or 56mm optics while working naturally with the 3-12x magnification range.

Leupold lists the exterior objective housing diameter at approximately 1.8 inches.

Therefore, remember that the 40mm optical objective and the outside housing diameter describe different measurements.

Integrated Throw Lever

One useful feature of the VX-4HD is its integrated low-profile throw lever.

The lever gives the user a larger control point for turning the magnification ring.

As a result, moving through the 3-12x range becomes easier than gripping the ring alone.

Leupold includes the integrated throw lever as a standard feature across the current VX-4HD platform.

Fixed 150-Yard Parallax

Leupold sets the parallax on this model at approximately 150 yards.

The Hunt-Plex version does not use adjustable side focus or an adjustable objective.

Therefore, enter:

Parallax: Fixed at 150 yards

in your WooCommerce specification table.

Do not describe this version as a side-focus scope.

No Side Focus

This exact 3-12×40 Hunt-Plex configuration has no precision side-focus control.

That gives it a simpler center section than VX-4HD configurations designed with additional parallax adjustments.

For that reason, avoid copying side-focus specifications from another 3-12x or 4-16x VX-4HD model.

Eye Relief

Leupold lists approximately:

3x: 4.0 inches
12x: 3.9 inches

The small difference means eye relief remains fairly consistent throughout the magnification range.

However, final mounting position still depends on the rifle, rings and user’s natural viewing position.

Check the complete sight picture at both ends of the magnification range before finalizing installation.

Field of View

The scope provides approximately:

3x: 33.5 ft at 100 yards
12x: 8.4 ft at 100 yards

This change is normal because field of view narrows as magnification increases.

Therefore, the lower setting provides the wider view while the upper setting provides a closer look at a smaller portion of the scene.

Non-Illuminated Hunt-Plex Reticle

This specific Hunt-Plex configuration uses a non-illuminated reticle.

Leupold lists Illuminated Reticle: No and Daylight Bright Illumination: No for part #185451.

Therefore, there is no reticle battery to replace.

This also separates the scope from VX-4HD FireDot models, which use electronic illumination.

No Battery Required

Because this Hunt-Plex reticle is non-illuminated, the scope does not require a battery for reticle visibility.

There is also no brightness control to manage.

The etched reticle remains part of the optical system under suitable viewing conditions.

Elite Optical System

Leupold equips the VX-4HD with its Elite Optical System.

The company describes the system as focusing on strong light transmission, glare reduction, resolution and clarity across changing outdoor conditions.

In everyday wording, the system aims to maintain a clear image as surrounding light changes.

This gives the product page useful optical information without relying on exaggerated marketing language.

High-Definition Lenses

The VX-4HD also uses high-definition lenses.

Leupold highlights improved clarity, color and image resolution across the magnification range as part of the HD optical package.

This is one of the key differences between the newer VX-4HD and simpler Leupold scope families.

For SEO, terms such as HD lenses and Elite Optical System work naturally without repeating the complete focus phrase.

Fast-Focus Eyepiece

Leupold gives the VX-4HD a fast-focus eyepiece.

The design allows the user to adjust the eyepiece until the reticle appears sharp to their eyesight.

Once adjusted correctly, the eyepiece generally requires little additional attention.

Leupold specifically includes the fast-focus eyepiece in its description of the current VX-4HD platform.

Lightweight 14.6 oz Design

The scope weighs approximately 14.6 ounces, or about 414 grams.

That keeps the optic reasonably light considering the 30mm tube, 12x upper magnification and HD optical system.

The lower weight also helps distinguish the Hunt-Plex version from illuminated VX-4HD configurations with additional controls.

12.7-Inch Length

Leupold lists the overall length at approximately 12.7 inches.

The total available mounting space measures approximately 5.6 inches.

Leupold further lists:

• Front mounting space: 2.1 inches
• Rear mounting space: 1.9 inches
• Eyepiece length: 3.2 inches
• Objective section length: 3.8 inches
• Objective housing diameter: 1.8 inches
• Eyepiece diameter: 1.7 inches

These measurements can help when checking the physical fit of the scope.

Waterproof Construction

Leupold lists the VX-4HD as waterproof.

The company uses internal sealing systems designed to keep moisture away from the optical components.

Therefore, the scope can handle changing outdoor weather when correctly maintained.

Proper storage and lens care still matter.

Fogproof Design

The VX-4HD is also fogproof.

Leupold uses internal gases and sealing methods to reduce moisture and internal fogging during changes in temperature and elevation.

This means the user does not need to open or service the optical system when weather conditions change.

Shockproof Construction

Leupold also lists the VX-4HD as shockproof.

The scope uses a rugged construction designed to withstand the normal mechanical stresses associated with outdoor use.

Correct mounting still matters, so use suitable 30mm rings or a compatible one-piece mount.

Designed, Machined and Assembled in the USA

Leupold states that the VX-4HD is designed, machined and assembled in the USA.
